H400
Designed for Fast, Accurate, Single-Denomination Payout
High-Speed Compact Coin Hopper — H400 Series

Fast & Accurate Dispensing

Enhanced Reliability

Easy Integration

H400

H400 Series

High-Speed Compact Coin Hopper
Product Overview

This compact coin hopper is designed for fast, accurate, single-denomination payout. Equipped with a high-torque motor and precision coin-counting sensor, it ensures reliable dispensing performance for vending, payment, and self-service applications.



Engineered to deliver stable operation in high-duty cycles, the Hopper supports flexible output orientation, scalable capacity, and automatic jam-clearing via motor reversal — minimizing downtime and ensuring consistent performance in demanding environments.


Key Benefits

Product Features

High-Speed Dispensing: Up to 6 coins/sec
Precision Counting: Built-in coin-count sensor
Coin Compatibility:
Diameter: 15–30 mm
Thickness: 1.6–2.4 mm
Standard Capacity: Approx. 400 coins
Expandable Capacity: +300 coins per additional expander tank
Automatic Jam Removal: Motor reverse clearing
Adjustable Discharge Direction: Flexible outlet positioning

Technical Specifications

H400
Supported Coin Types
Diameter: 15-30mm , Thickness: 1.6-2.4mm
Coin capacity
400 coins/hopper , 300 coins/expander tank
Dispensing speed
Approx. 6 coins/sec
Coin outlet reorientation
Supported
Dimension
85 x 170 x 180 mm
Interface
cctalk

Application Scenarios

Applicable industries

Retail & Supermarkets

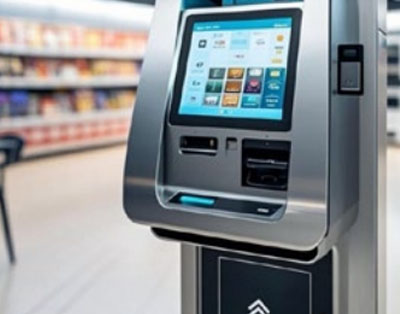

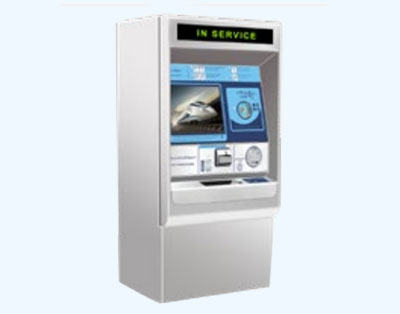

Ticketing & Vending
Parking & Toll
Gaming & Amusement
Transportation Systems
